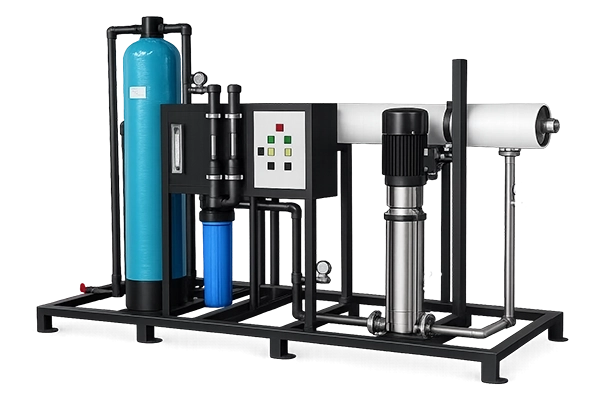

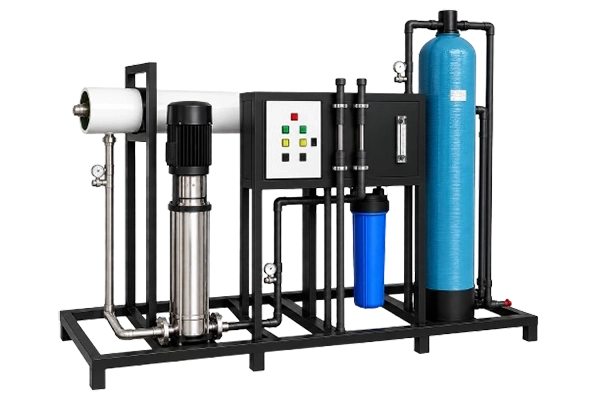

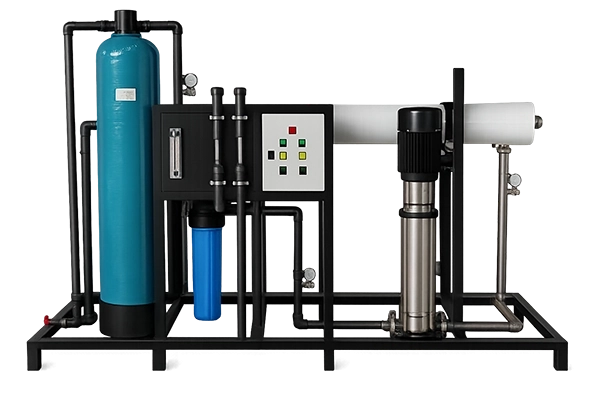

RO Plant 10000 GPD Fully Automatic

The 10000 GPD Fully Automatic Reverse Osmosis (RO) Plant is a high-capacity water treatment system designed to handle brackish water with Total Dissolved Solids (TDS) up to 8000 ppm. Built for performance, reliability, and energy efficiency, this system delivers a continuous supply of high-quality purified water for various industrial and commercial applications.

The system features robust pre-treatment including FRP sand filtration and cartridge filtration to remove suspended solids and protect the RO membranes. It is equipped with high-quality stainless steel (SS316) feed and high-pressure pumps to ensure durability and stable operation under demanding conditions.

At the core of the system, high-efficiency 8040 brackish water RO membranes (LG / Toray) are installed in heavy-duty FRP pressure vessels rated up to 450 PSI, providing salt rejection rates of up to 98–99%. The integrated chemical dosing system ensures proper antiscalant injection, extending membrane life and maintaining optimal performance.

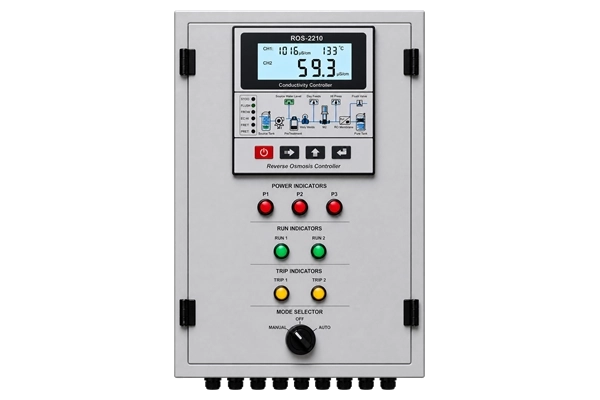

The plant is controlled via a fully automatic control panel with PLC system, incorporating premium electrical components and safety protections such as low-pressure switches, phase failure relays, and real-time TDS monitoring for both feed and product water.

Constructed with SS316 high-pressure piping and durable PVC low-pressure piping, the system is skid-mounted for compact installation and ease of maintenance.

This RO system is ideal for industries, commercial buildings, agriculture, hospitality, and potable water production, offering reliable operation, high recovery rates, and consistent water quality.
